Working Trajopt #1

ommmid · 2019-07-23T02:19:24Z

The tesseract env and kin are not used at all. They are replaced with what we have in planning_scene, for that I copied and adjusted the needed files from trajopt_ros, i.e., problem_description and kinematic_terms
The constraint from planning interface request is converted to the constraint we need in trajopt and that is only for joint state constraint for now.
No response from tesseract is used. planning interface response is created and fed internally.

Problems:

The start state for trajopt is not set, that is probably why I get a solution that has the same joint values for all timesteps except the last timestep
start_fixed is set to false. if it is true it means: it constraints the joint values to be their initialized ones but because the start state is not set, then it creates problem. I am not sure about this.
Please ignore the followings:
There are few struct and classes that are not used
There are headers that are included in different files that might not be used.
Also in CMakeLists, there might be extra or unused packages.

@davetcoleman @BryceStevenWilley @henningkayser @felixvd @j-petit

BryceStevenWilley

Just some initial thoughts, most comments you can ignore until this is ready for a full review, but most of the comments on the TrajOpt interface document are important.

moveit_planners/trajopt/trajopt_interface_plugin_description.xml

moveit_planners/trajopt/launch/gdb_settings.gdb

moveit_planners/trajopt/package.xml

moveit_planners/trajopt/src/kinematic_terms.cpp

BryceStevenWilley · 2019-07-23T03:19:28Z

moveit_planners/trajopt/include/kinematic_terms.h

+  CartPoseErrCalculator(const Eigen::Isometry3d& pose,
+                        const planning_scene::PlanningSceneConstPtr planning_scene,
+                        std::string link,
+                        Eigen::Isometry3d tcp = Eigen::Isometry3d::Identity())


tcp is usused, should be added to the target_pose_inv * iteration_new_pose expression below.

I am not sure about using tcp as I am using getGlobalLinkTransform to get the global transform of the end-effector. I will investigate this more when I try to add Cartesian pose constraint

moveit_planners/trajopt/src/trajopt_interface.cpp

BryceStevenWilley · 2019-07-23T13:58:22Z

moveit_planners/trajopt/src/trajopt_interface.cpp

+      // Create place pose constraint
+      std::shared_ptr<trajopt_interface::JointPosTermInfo> joint_pos(new trajopt_interface::JointPosTermInfo);
+      joint_pos->term_type = trajopt::TT_CNT;
+      joint_pos->name = "joint pose name ^_^";


moveit_planners/trajopt/src/trajopt_interface.cpp

BryceStevenWilley · 2019-07-23T13:59:51Z

moveit_planners/trajopt/src/trajopt_interface.cpp

+    moveit::core::RobotState start_state(planning_scene->getCurrentState());
+    moveit::core::robotStateMsgToRobotState(req.start_state, start_state);
+    // This function converts the moveit_msgs::RobotState (from req.start_state) to moveit::core::RobotState (start_state).
+    start_state.update();


Your PR comment mentions that the start state is not set. How is anything working if you don't set the start state? If you are only setting the goals state, then none of the trajectories you get should be feasible.

I meant the start state as a constraint for trajopt as we talked in the previous meeting.

Ah, I see. I think I misunderstood what you meant by 'somewhat working': I assumed that you had gotten valid trajectories on some examples and had fixed the issue we talked about on Thursday.

I added the the start state as a constraint too.

davetcoleman · 2019-07-23T16:34:55Z

start_fixed is set to false. if it is true it means: it constraints the joint values to be their initialized ones but because the start state is not set, then it creates problem. I am not sure about this.

This seems like a really important detail to understand. Have you been able to read through its behavior in Tesseract to understand what it does? Maybe @Levi-Armstrong could quickly shed some light on this variable

davetcoleman

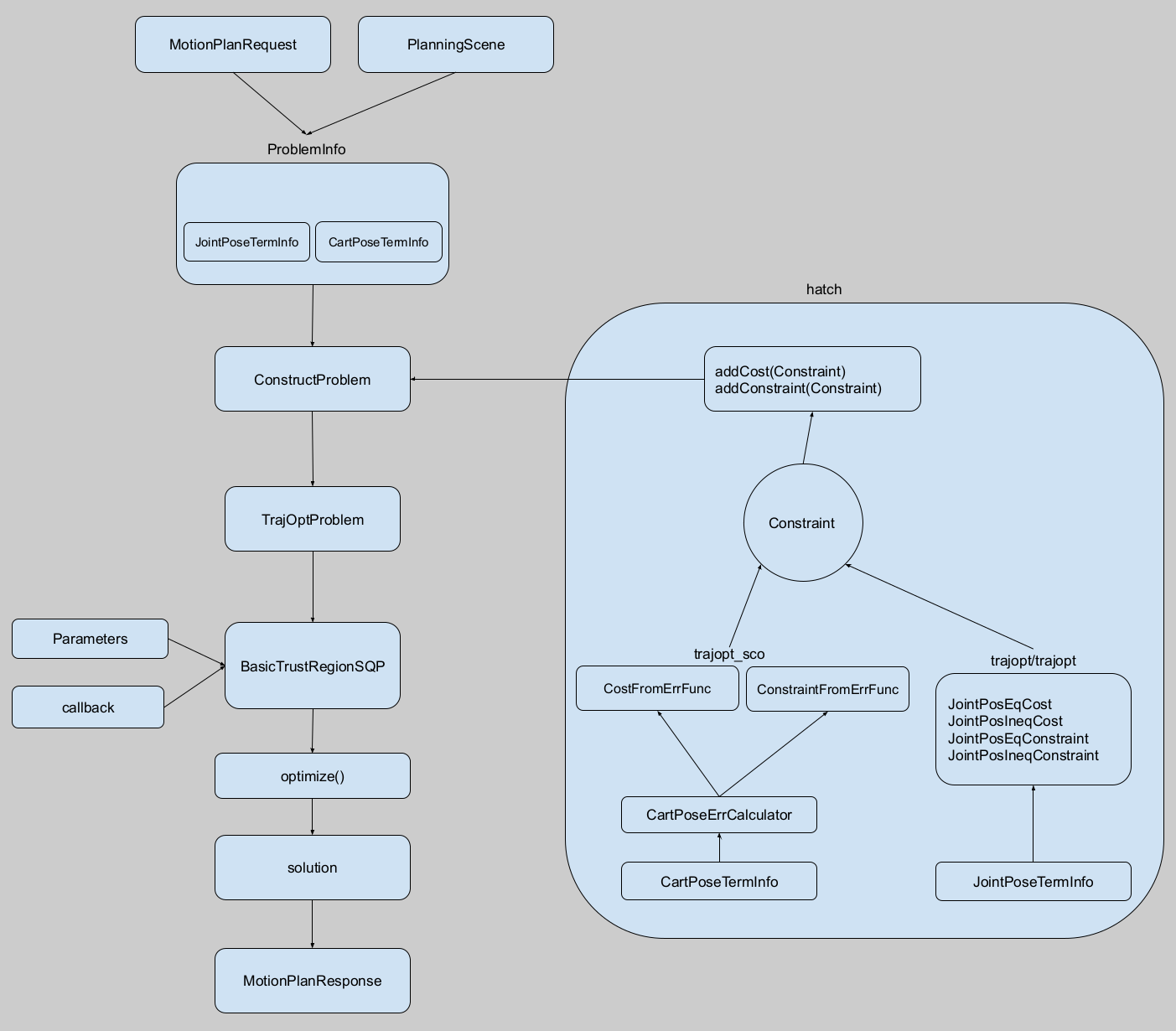

Can you share relevant diagrams explaining the relationship of the files / classes in this PR?

davetcoleman · 2019-07-23T18:17:28Z

moveit_planners/trajopt/config/setup.yaml

@@ -0,0 +1,14 @@
+trajopt_param:


please add comments explaining what each of these parameters do, so that reviewers can better understand this PR

You may want to cite the publication / note the paper's notation in the comments

yaml file is the right place to put the citation or it should be in another file?

sorry, i didn't mean cite the paper, i meant explain how these parameters relate to what were presented in the original research, since the var names probably differ

davetcoleman · 2019-07-23T18:19:12Z

moveit_planners/trajopt/include/kinematic_terms.h

+ * @brief Used to calculate the error for StaticCartPoseTermInfo
+ * This is converted to a cost or constraint using TrajOptCostFromErrFunc or TrajOptConstraintFromErrFunc
+ */
+struct CartPoseErrCalculator : public sco::VectorOfVector


Have you used rviz_visual_tools to better understand if your vectors are in the right frame, and if the error calculation intuitively makes sense?

I've never seen a struct inheritance... this isn't normal

I got it from the original trajopt pakage. Should I change them to class?

I am actually using rviz_visual_tools

yes, per Google style, if it has functions, it should be a class

moveit_planners/trajopt/include/problem_description.h

moveit_planners/trajopt/include/trajopt_interface.h

moveit_planners/trajopt/src/kinematic_terms.cpp

moveit_planners/trajopt/src/test_trajopt.cpp

moveit_setup_assistant/src/widgets/configuration_files_widget.cpp

ommmid · 2019-07-23T19:18:15Z

start_fixed is set to false. if it is true it means: it constraints the joint values to be their initialized ones but because the start state is not set, then it creates problem. I am not sure about this.

This seems like a really important detail to understand. Have you been able to read through its behavior in Tesseract to understand what it does? Maybe @Levi-Armstrong could quickly shed some light on this variable

#1 (comment)

ommmid · 2019-07-23T20:29:59Z

Can you share relevant diagrams explaining the relationship of the files / classes in this PR?

There is a lot of infrastructure missing to get this to actually run... - the plugin needs to be registered - pr2_moveit_config is not in moveit_resources

* Clarify object importing * Add suggestion (LARGE_MESH_THRESHOLD) * Add file filter * Add tooltip, clarify names * Fix and clarify names in robot states tab * Add dialogue to Clear button in robot states
