Summary

Two requested changes to the Status mix chart on Service Detail:

  1. Chart type → stacked column instead of line. Each column is a 1-minute bucket; segments inside stack bottom-up.
  2. Include ok class → the query no longer filters `status_class != "ok"`. The slate baseline shows total request volume and errors stack visibly above it.

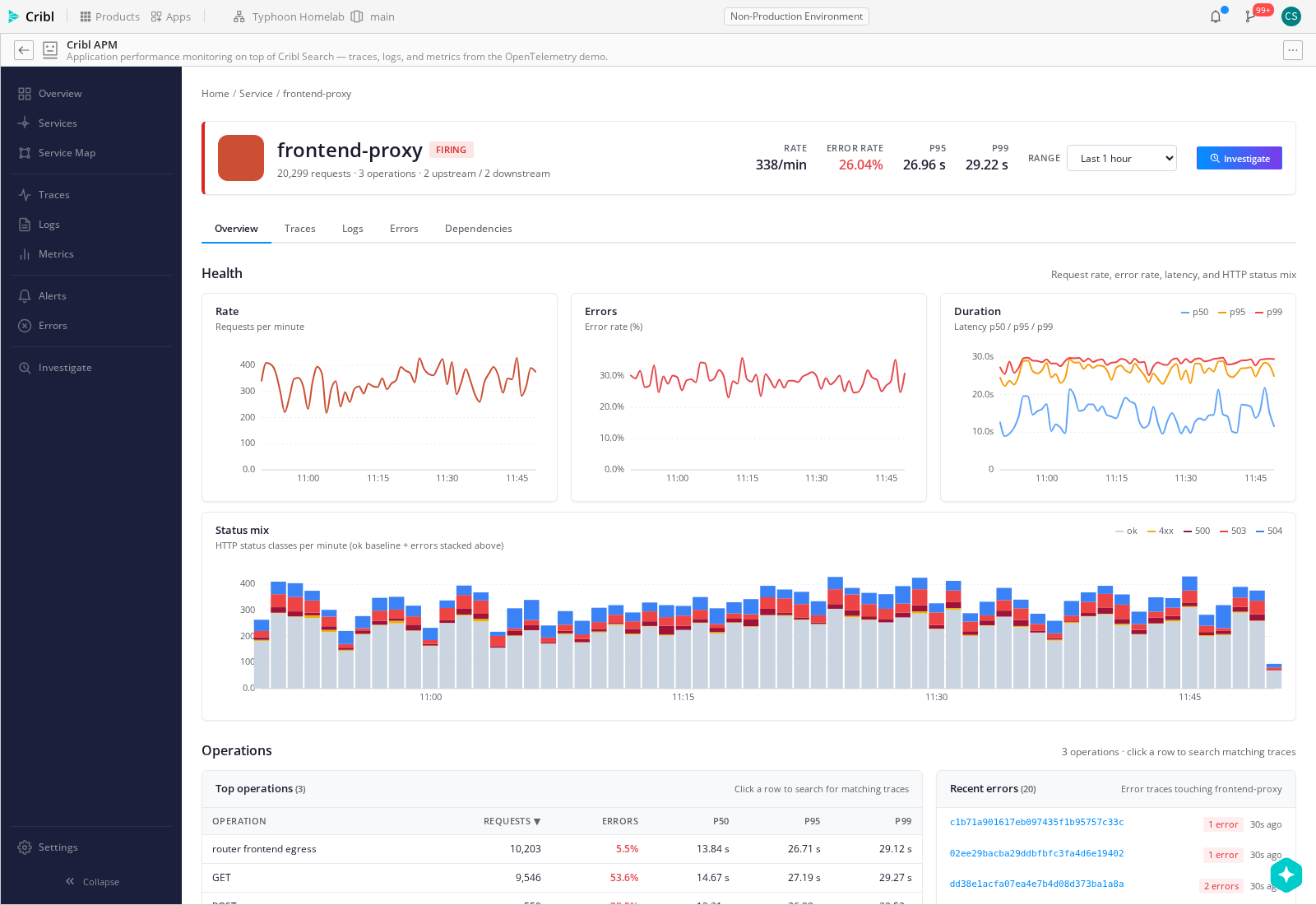

After

`frontend-proxy` over the last hour (ok 71%, 504 13%, 503 10%, 500 5%, 4xx 1%):

status mix

Implementation

  • `src/components/StackedColumnChart.tsx` — new SVG component, reuses `LineChart.module.css` so the shell (title / subtitle / legend / tooltip / empty state) matches sibling panels. Hover tooltip lists segments top-to-bottom matching what the operator sees onscreen, plus a "total" row.
  • `src/api/queries.ts` — dropped the `where status_class != "ok"` filter.
  • `src/api/types.ts` — added `'ok'` to `StatusCodeClass`, reordered `STATUS_CODE_CLASSES` to define stack order (ok at bottom, errors stacked above).
  • `src/routes/ServiceDetailPage.tsx` — swap LineChart → StackedColumnChart for status mix, added the ok color (slate-300).

Test plan

  • Open https://main-objective-shirley-sho21r7.cribl-staging.cloud/ → APM → Services → `frontend-proxy`.
  • Verify the chart is now stacked columns, not lines.
  • Verify the legend includes `ok` (light slate swatch).
  • Verify the bottom slate segment dominates each bar (since ok ≫ errors on a healthy service).
  • Hover a column — tooltip should show segments top-to-bottom + a "total" row.
  • Pick a service with zero errors (e.g. a healthy one). Verify column is solid slate with no error segments.

Pre-merge checks

  • ✓ `npm run lint` — 0 errors, 1 pre-existing warning
  • ✓ `npx tsc --noEmit` — clean
  • ✓ `npm test` — 63/63 passing

🤖 Generated with Claude Code

Two requested changes:

1. **Chart type**: Status mix renders as a stacked column chart
   instead of multiple overlapping lines. Each column is a
   1-minute bucket; segments inside stack bottom-up in the order
   defined by STATUS_CODE_CLASSES.

2. **ok class included**: query no longer filters
   `status_class != "ok"`. The baseline (ok requests, slate-300)
   shows absolute volume and errors stack on top in saturated
   colors, so a mix shift reads at a glance against the volume
   context.

### Files

- `src/components/StackedColumnChart.tsx` (new) — SVG-based,
  reuses LineChart.module.css for the shell (title / subtitle /
  legend / tooltip / empty-state) so it matches the sibling
  panels. Hover tooltip lists segments top-to-bottom matching
  what the operator sees onscreen, plus a total row.
- `src/api/queries.ts` — drop the `status_class != "ok"` filter.
- `src/api/types.ts` — add `'ok'` to `StatusCodeClass` and
  reorder `STATUS_CODE_CLASSES` to define stack order (ok at
  bottom, error classes stacked above).
- `src/routes/ServiceDetailPage.tsx` — swap LineChart →
  StackedColumnChart for status mix, add the ok color (slate)
  and reshape series for stacking.

Screenshot evidence in
`docs/sessions/screenshots/2026-05-27-status-mix-stacked-columns/`.

Pre-PR checks: lint clean (0 errors), typecheck clean,
63/63 unit tests pass.

Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>
