A fascinating exploration of evolutionary computation and genetic algorithms applied to car design optimization! This project simulates the evolution of car designs through natural selection principles, demonstrating how computational biology techniques can solve complex engineering problems.
This simulation creates a population of virtual cars with varying characteristics (frame length, body shapes, wheel configurations) and evolves them through generations to optimize their racing performance. Just like in nature, the fittest individuals survive and reproduce, passing their beneficial traits to offspring while introducing beneficial mutations.
The genetic algorithm implemented here mirrors fundamental principles of biological evolution:
- Natural Selection: Only the fastest cars survive to reproduce
- Genetic Diversity: Each car has a unique "genome" encoding its physical characteristics
- Crossover: Parent cars mate to produce offspring with combined traits
- Mutation: Random variations introduce novel characteristics
- Population Dynamics: Generations evolve toward better-adapted individuals

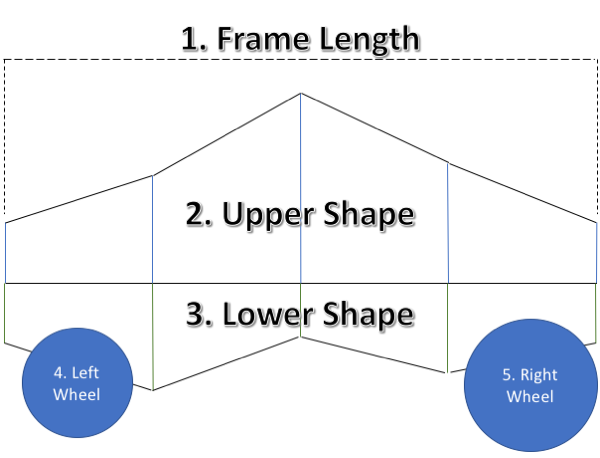

Each virtual car is defined by 15 genetic parameters organized into 5 key components:
- Range: 2.0 - 6.0 meters
- Impact: Affects stability and aerodynamics
- Parameters: 5 floating-point values
- Description: Height at equi-spaced points from rear to front
- Example:
[0.8, 1.0, 1.0, 0.5, 0.3]
- Parameters: 5 floating-point values
- Description: Ground clearance at equi-spaced points
- Example:
[0.3, 0.3, 0.3, 0.3, 0.3]
- Position: 0.0 (rear) to 1.0 (front)
- Radius: 0.0 - 2.0 meters
- Example:
[0.1, 0.5](near rear, medium size)
- Position: 0.0 (rear) to 1.0 (front)
- Radius: 0.0 - 2.0 meters
- Example:
[0.9, 0.5](near front, medium size)
Cars must satisfy realistic engineering constraints:
- Total Height: 0.5 - 5.0 meters (upper + lower at each point)
- Frame Length: 2.0 - 6.0 meters
- Wheel Radius: 0.0 - 2.0 meters
- Wheel Position: 0.0 - 1.0 (relative to frame)
Each car's design is encoded as a 15-element genome:
genome = [frame_length, upper[0:5], lower[0:5], left_wheel[0:2], right_wheel[0:2]]
# Example: [4.0, 0.8, 1.0, 1.0, 0.5, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.1, 0.5, 0.9, 0.5]Cars are evaluated on two criteria:
- Track Completion: How far along the track they travel (0.0 - 1.0)
- Race Time: How quickly they complete the track (if they finish)
Scoring Formula:
if completion < 1.0:
fitness = completion # Didn't finish: only distance matters
else:
fitness = 1.0 + (100.0 - time) # Finished: bonus for speed- Method: Tournament selection of top 30% performers
- Principle: Survival of the fittest drives evolution
- Method: Single-point crossover
- Process: Random split point combines parent genomes
child_genome = parent1_genome[:crossover_point] + parent2_genome[crossover_point:]- Method: Gaussian noise addition
- Strength: Configurable (default 0.05)
- Constraint Handling: Values clipped to valid ranges
- Elite Preservation: Best 30% survive each generation
- Offspring Production: 40% created through mating
- Random Immigration: 30% new random individuals prevent local optima
- Python 3.x
- NumPy for numerical computations
- Jupyter Notebook for interactive exploration
- Car Simulator Binary (platform-specific)
# Clone the repository
git clone https://github.com/ateferos77/Car_Simulation.git
cd Car_Simulation
# Install dependencies
pip install numpy jupyter
# Launch the interactive notebook
jupyter notebook carsimulatoin.ipynb- Use the included
carsim.exeexecutable - Alternatively, extract
carsim_windows.zip
- You may need to compile the simulator from source
- Or use Wine to run the Windows executable
import carsim
import numpy as np
# Define a car blueprint
car = [
4.0, # Frame length
np.array([0.8, 1.0, 1.0, 0.5, 0.3]), # Upper profile
np.array([0.3, 0.3, 0.3, 0.3, 0.3]), # Lower profile
np.array([0.1, 0.5]), # Left wheel [position, radius]
np.array([0.9, 0.5]) # Right wheel [position, radius]
]
# Simulate the car's race
trajectory = carsim.simulate(*car)# Create initial population
population = initial_population(100)
# Evolve for multiple generations
for generation in range(30):
scores = carsim.race(population)
population = generation_evolution(population, scores)
# Track best performer
best_car = select_best(population, scores, 0.1)[0]
print(f"Generation {generation}: Best score = {max(combined_scores(scores))}")Open carsimulatoin.ipynb to:
- 🔬 Explore car anatomy step-by-step
- 🧬 Learn genetic algorithm concepts
- 🏎️ Watch cars race in real-time
- 📊 Analyze evolutionary progress
- 🎛️ Experiment with parameters
- Real-time Racing: Watch cars navigate tracks in web browser
- Visual Evolution: Observe design improvements across generations
- Parameter Tuning: Experiment with mutation rates, population sizes
- Biological Concepts: Learn natural selection, genetics, evolution
- Computational Methods: Understand optimization algorithms
- Engineering Applications: See how biology inspires technology
- Modular Design: Easy to modify fitness functions
- Constraint System: Realistic manufacturing limitations
- Population Management: Sophisticated breeding strategies
- Protein Folding: Optimize 3D protein structures
- Drug Discovery: Evolve molecular compounds
- Phylogenetic Analysis: Reconstruct evolutionary trees
- Sequence Alignment: Find optimal DNA/protein alignments
- Bioinformatics: Genetic sequence analysis
- Synthetic Biology: Design artificial biological systems
- Ecosystem Modeling: Simulate population dynamics
- Medical Research: Optimize treatment protocols
- Neural Architecture Search: Evolve AI model structures
- Robotics: Optimize robot behaviors and morphologies
- Engineering Design: Evolve mechanical systems
- Scheduling Problems: Optimize resource allocation
Generation 0: Average fitness = 0.23, Best fitness = 0.67
Generation 10: Average fitness = 0.78, Best fitness = 0.94
Generation 20: Average fitness = 0.89, Best fitness = 1.23
Generation 30: Average fitness = 0.95, Best fitness = 1.41
- Early Generations: Most cars crash, few complete track
- Middle Generations: More cars finish, times improve
- Late Generations: Fine-tuning for optimal speed
We welcome contributions from both biology and computer science communities!
- New Fitness Functions: Alternative performance metrics
- Advanced Operators: Sophisticated crossover/mutation methods
- Visualization Tools: Better progress tracking and analysis
- Documentation: Biological explanations and tutorials
- Platform Support: Cross-platform simulator binaries
- Fork the repository
- Create a feature branch:
git checkout -b feature-name - Implement your changes with tests
- Document biological relevance where applicable
- Submit a pull request with detailed description
- Compare with other evolutionary algorithms
- Investigate different selection pressures
- Analyze genetic diversity maintenance
- Study convergence properties
- 3D Dynamics: Full three-dimensional simulation
- Aerodynamics: Wind resistance and downforce
- Tire Models: Realistic friction and wear
- Suspension Systems: Springs and dampers
- Multi-objective Optimization: Speed vs. fuel efficiency
- Diploid Genetics: Dominant/recessive traits
- Sexual Selection: Mate choice algorithms
- Population Structure: Geographic isolation effects
- Autonomous Vehicles: Evolve driving behaviors
- Formula 1 Design: Optimize for specific tracks
- Off-road Vehicles: Terrain-specific adaptations
- Electric Vehicles: Battery and efficiency optimization
- Comparative Evolution: Multiple species competition
- Environmental Changes: Dynamic track conditions
- Coevolution: Predator-prey dynamics
- Cultural Evolution: Learning and teaching behaviors
