Texicon — A Beautiful Icon + Text Button Widget for egui

Texicon (Text+icon) is a highly customizable, stateful icon + text widget for egui — perfect for toolbars, sidebars, dashboards, or any UI where you need clean, modern-looking clickable icons with optional labels and rich interaction states (normal, hover, selected).

Features

• Custom SVG/PNG images with tinting
• Multi-state coloring (normal / hover / selected)
• Optional text below the icon with automatic centering and wrapping
• Clickable full frame or image+text-only interaction sensing
• Tooltips with customizable position and gap
• Builder pattern for clean, fluent configuration
• Runs on Linux, Mac, Windows, WebAssembly (wasm) and Raspberry Pi
• Images are compiled into the binary executable

Ideal for desktop apps, tools, editors, and games built with egui + eframe.

Live wasm demo app

The wasm demo app runs in your web browser.

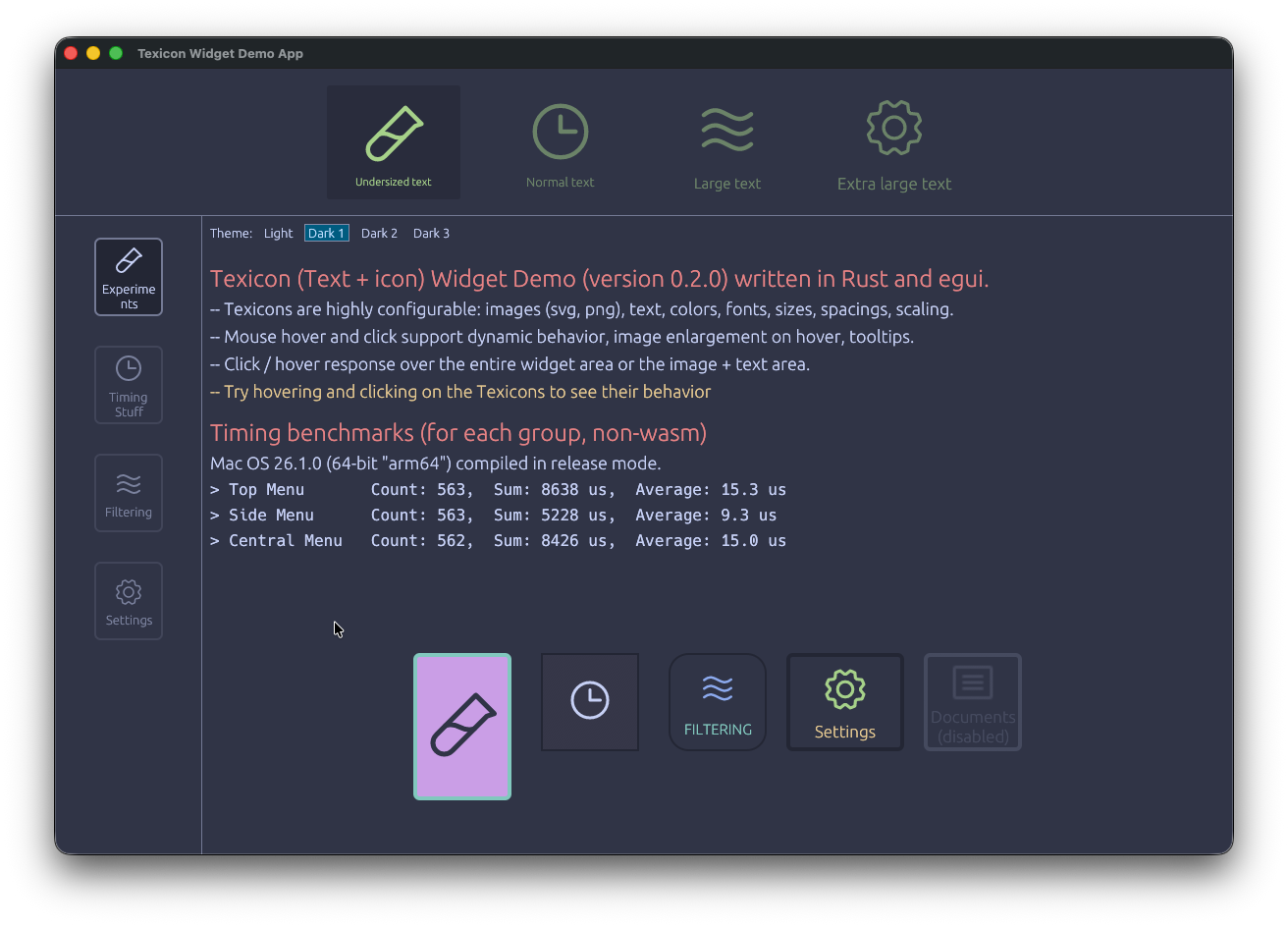

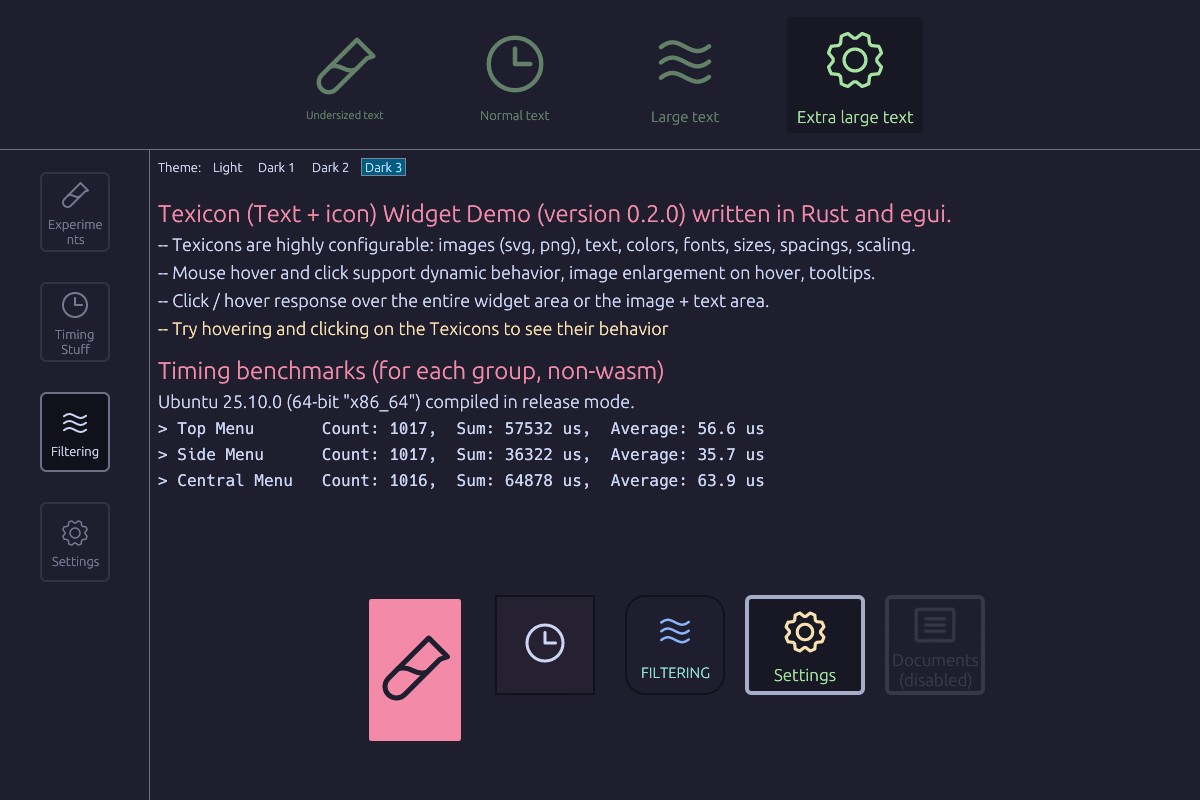

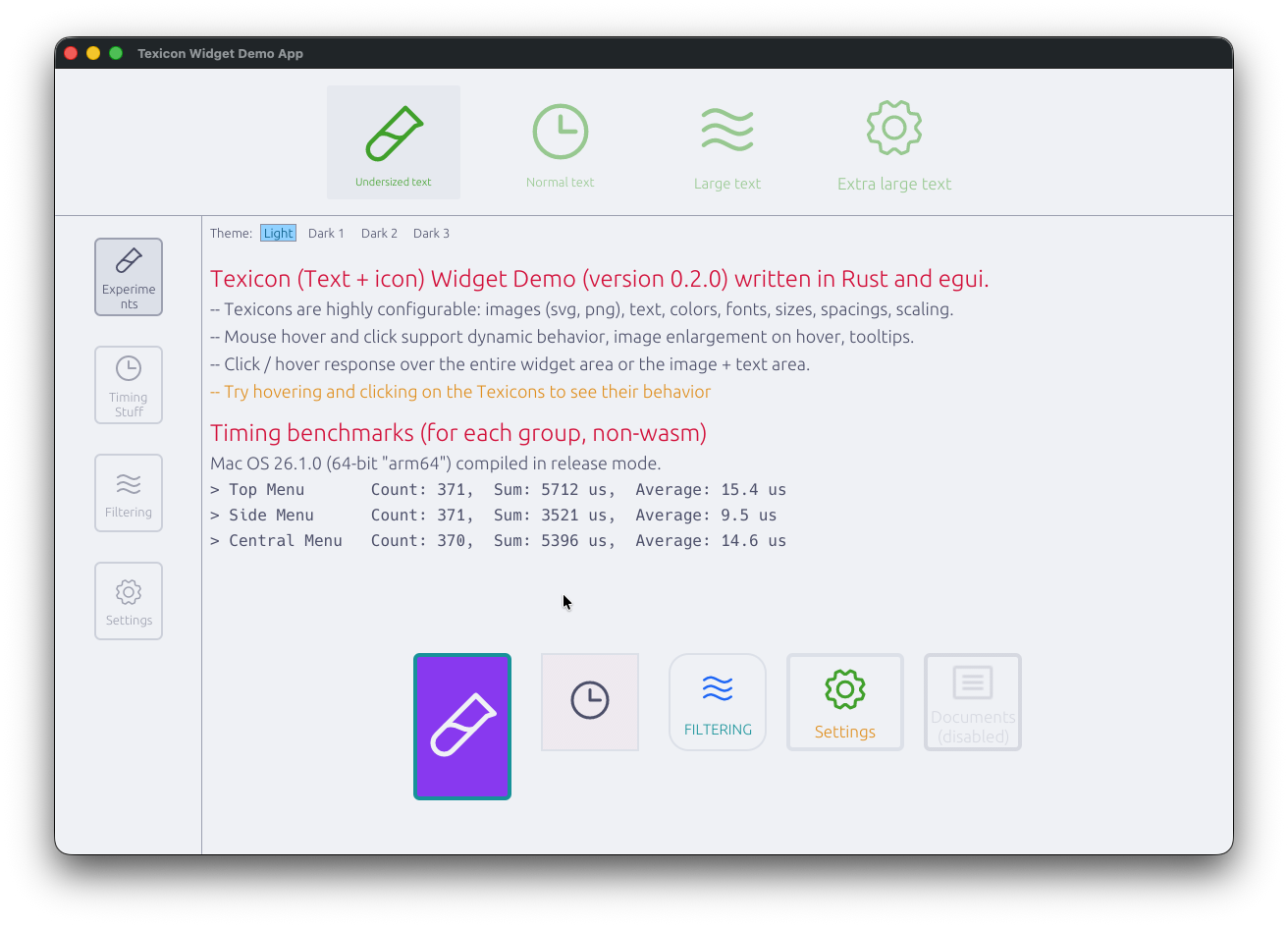

Screenshots

Theming

The demo app uses White Rabbit's Themenator widget to provide Catppuccin color theming.

Quick Start

Option 1. Download the Texicon demo app.

• Download from Github then compile and run: cargo run

Option 2. Begin from eframe_template app.

• Download the eframe_template from Github.
• Ensure rust-toolchain and Cargo.toml specify the latest rust version.
• Add egui-widget-texicon and egui_extras to Cargo.toml. egui_extras is required for egui to load images.

[dependencies]
egui-widget-texicon = 0.2
egui_extras = { version = "0.33", features = ["default", "all_loaders"] }

main.rs needs a small modification to include the image loader. Modify the Box::new code block:

Box::new(|cc| {
    // This gives us image support:
    egui_extras::install_image_loaders(&cc.egui_ctx);
    Ok(Box::new(eframe_template::TemplateApp::new(cc)))
}),

In app.rs select an image to use for the Texicon. The following uses an existing eframe_template image:

const TEXI_IMG: egui::ImageSource<'_> = egui::include_image!("../assets/icon-1024.png");

The Texicon widget is added into your app as follows. TEXI_IMG is passed to the widget:

ui.add(egui_widget_texicon::Texicon::new(TEXI_IMG));

Texicon widgets can be customized as shown in the example below:

ui.add(
    egui_widget_texicon::Texicon::new(TEXI_IMG)
        .enabled(true)
        .selected(true)
        .img_size(egui::vec2(50., 50.))
        .img_scale_hov(1.5)
        .text("Button text")
        .text_size(18.)
        .bkgnd_col(egui::Color32::RED)
        .img_tint_col_hov(egui::Color32::PURPLE)
        .text_col_hov(egui::Color32::ORANGE)
        .frame_col_hov(egui::Color32::GREEN)
        .frame_size(egui::vec2(100., 150.))
        .frame_width(4.)
        .tooltip_text("I am a tooltip".to_string())
        .tooltip_gap(40.)
        .tooltip_position(egui::RectAlign::BOTTOM),
);

Platform Support

• Linux
• macOS
• Windows
• WebAssembly (wasm)
• Raspberry Pi 5 with Touchscreen

License

Licensed under either of:

• Apache License, Version 2.0 (LICENSE-APACHE)
• MIT License (LICENSE-MIT)

at your option.

Author

Made with ❤️ by Rob @ White Rabbit Scientific.

Inspired by modern design tools and clean UI patterns.
