SmellHunter API

Event-driven API for detecting code smells using metrics analysis and a Domain Specific Language (DSL).

Table of Contents

1. Research Motivation

   • Problem
   • Research Gap
   • Proposed Approach

2. Architecture

3. Detection Workflow

4. API Endpoints

   • POST analyze
   • GET status
   • GET smells

5. Event Flow

6. Response Codes

7. Observers Overview

8. Setup Guide

   • Prerequisites
     • Python Environment
     • Install Dependencies
     • Google Sheets Setup

9. Running the Application

10. Eclipse Plugin Setup

    • Requirements
    • Import Plugin Project
    • Build and Run

11. Data Visualization

    • Overview
    • Physical Context View
    • Smell Details View

Research Motivation

Problem

Code smells are internal structures in source code that violate coding conventions and design principles, harming the internal quality of evolving systems and indicating issues of architectural and design degradation.

They typically arise when developers make hurried or poorly planned modifications to implement features or fix problems.

Research Gap

Traditional detection approaches focus mainly on static analysis and predefined technical metrics. However, such approaches often ignore important aspects of the development context, such as team characteristics, project constraints, and the stage of software evolution.

Proposed Approach

Unlike traditional detection approaches, SmellHunter integrates technical metrics alongside development context.

The tool supports asynchronous analyses, reducing interference with the developer’s workflow while enabling scalable and incremental processing.

This approach aims to reduce false positives and helps in refactoring decisions aligned with real-world development contexts.

Architecture

The system uses an event bus pattern with the following event types:

• ANALYSIS_REQUESTED

• VALIDATION_COMPLETED / VALIDATION_FAILED

• ANALYSIS_COMPLETED

• PERSISTENCE_COMPLETED

Detection Workflow

flowchart LR

A[Eclipse Plugin / Client] --> B[POST /analyze]

B --> C[API Gateway]

C --> D[Event: ANALYSIS_REQUESTED]

D --> E[Validation Service]

E --> F{Validation Result}

F -->|Success| G[Event: VALIDATION_COMPLETED]
F -->|Failure| X[Event: VALIDATION_FAILED]

G --> H[Interpreter Engine]

H --> I[Event: ANALYSIS_COMPLETED]

I --> J[Persistence Worker]

J --> K[(Smell Storage)]

K --> L[GET /status]
K --> M[GET /smells]

Loading

API Endpoints

POST /analyze

Initiates asynchronous smell analysis.

Request Format: multipart/form-data or application/json

Required Parameters (multipart/form-data):

Field	Type	Required	Description
user_id	string	Yes	User identifier
smell_dsl	file	Yes	.smelldsl file with smell definitions
metrics	file	Yes	CSV/JSON file with metric values
thresholds	file	Yes	CSV/JSON file with threshold values

Optional Parametes

Field	Type	Required	Description
loc_id	string	Yes	Location identifier
project_id	string	Yes	Project identifier
org_id	string	Yes	Company identifier

File Formats:

metrics.csv

Metrica,Valor
GodClass.ATFD,12
GodClass.TCC,4
LongMethod.LOC,300

thresholds.csv

Metrica,Valor
GodClass.ATFD-LIMIT,10
GodClass.TCC-LIMIT,5
LongMethod.LOC-LIMIT,100

smelldsl:

smelltype DesignSmell;
smell GodClass extends DesignSmell {
    feature ATFD with threshold 4, 10;
    feature TCC with threshold 3, 5;
    treatment "Refactor into smaller classes";
}
rule GodClassRule when (GodClass.ATFD > GodClass.ATFD-LIMIT) then "Flag";

JSON Request (alternative):

{
  "user_id": 3,
  "smell_dsl": "smelltype DesignSmell; smell GodClass extends...",
  "metrics": {
    "GodClass.ATFD": 12,
    "GodClass.TCC": 4
  },
  "thresholds": {
    "GodClass.ATFD-LIMIT": 10,
    "GodClass.TCC-LIMIT": 5
  },
  "request_data": {
    "org_id": 2,
    "loc_id": 3,
    "project_id": 1,
    "file_path": "/src/Main.java",
    "language": "java",
    "branch": "main",
    "commit_sha": "abc123"
  }
}

Response (202 Accepted):

{
  "status": "accepted",
  "ctx_id": "550e8400-e29b-41d4-a716-446655440000",
  "smell_id": "6ba7b810-9dad-11d1-80b4-00c04fd430c8"
}

GET /status/<ctx_id>

Check analysis status.

Response (processing):

{
  "status": "processing"
}

Response (completed):

{
  "status": "ok",
  "history": [
    {
      "cod_ctx": "550e8400-e29b-41d4-a716-446655440000",
      "status": "INTERPRETED",
      "details": "{\"result\": {\"is_smell\": true, \"smells_detected\": [\"GodClass\"]}}"
    }
  ]
}

GET /smells/<smell_id>

Retrieve persisted smell data.

Response (200 OK):

{
  "id": "6ba7b810-9dad-11d1-80b4-00c04fd430c8",
  "ctx_id": "550e8400-e29b-41d4-a716-446655440000",
  "timestamp_utc": "2024-01-01T12:00:00.000Z",
  "user_id": "123",
  "org_id": "456",
  "loc_id": "789",
  "project_id": "101",
  "type": "GodClass",
  "smell_type": "DesignSmell",
  "is_smell": true,
  "rule": {"GodClassRule": true},
  "file_path": "/src/Main.java",
  "language": "java",
  "branch": "main",
  "commit_sha": "abc123",
  "treatment": "Refactor into smaller classes",
  "metrics": {
    "GodClass.ATFD": 12,
    "GodClass.TCC": 4
  }
}

Event Flow

1. Eclipse Plugin Client → POST /analyze

2. API generates ctx_id and smell_id

3. Event ANALYSIS__REQUESTED published

4. ValidationObserver validates metrics and thresholds

5. Event VALIDATION_COMPLETED published

6. InterpreterWorker executes run_interpretation()

7. Event ANALYSIS_COMPLETED published

8. PersistenceWorker saves to local CSV

9. Event PERSISTENCE_COMPLETED published

10. SheetsPersistenceObserver saves to Google Sheets

11. StatusWorker stores result for status queries

12. Client polls GET /status/<ctx_id> and GET /smells/<smell_id>

Response Codes

Code	Description
202	Analysis accepted (async processing)
400	Bad request (invalid data)
404	Resource not found
500	Internal server error

Observers Overview

Observer	Event	Responsibility
ValidationObserver	ANALYSIS_REQUESTED	Starts the pipeline
InterpreterWorker	VALIDATION_COMPLETED	Executes interpretation
PersistenceWorker	ANALYSIS_COMPLETED	Saves to CSV
SheetsPersistenceObserver	PERSISTENCE_COMPLETED	Saves to Google Sheets
StatusWorker	ANALYSIS_COMPLETED	Stores for status queries
LogObserver	ANALYSIS_COMPLETED	Saves log file
CsvSheetsObserver	ANALYSIS_COMPLETED	Exports to CSV
EventBusLoggerObserver	All	Logs context events

Setup Guide

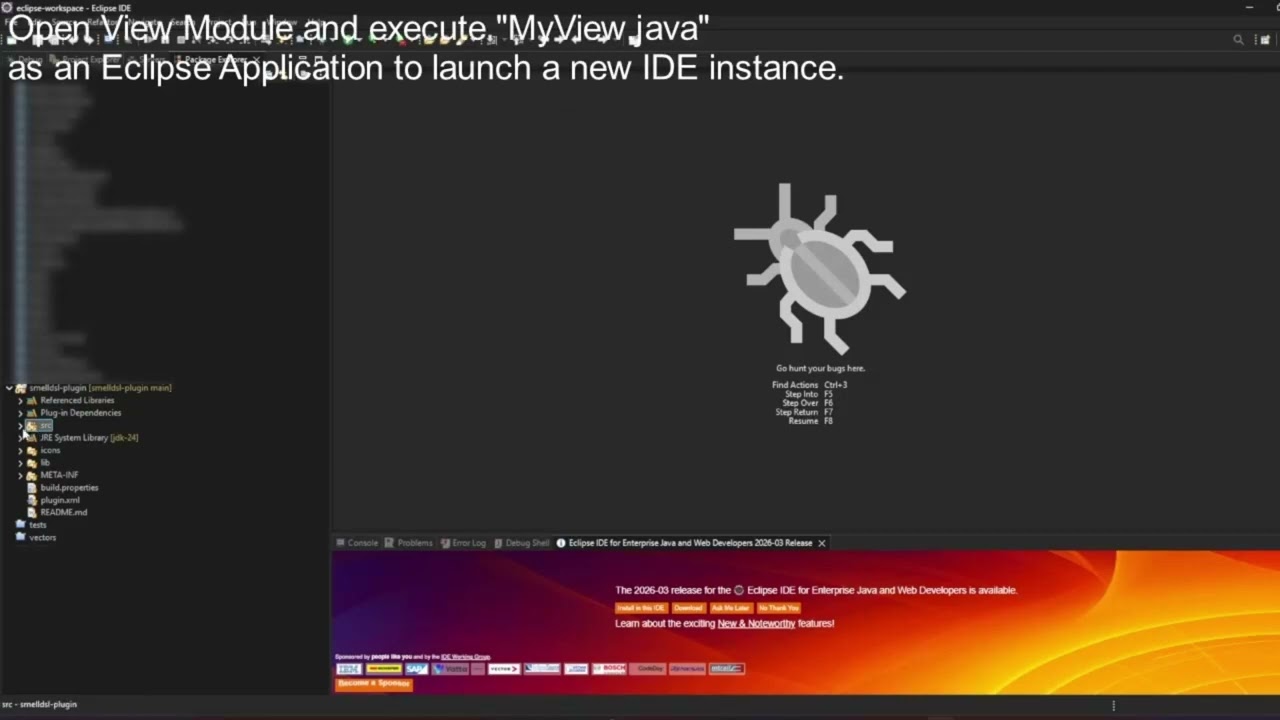

Reproducibility Video

🔗 Link

Complete Step-by-Step Installation

Prerequisites

Python Environment

Python 3.9+ required

python --version  # Verify version

Create virtual environment (recommended)

python -m venv venv

Activate virtual environment

# Windows:
venv\Scripts\activate
# Linux/Mac:
source venv/bin/activate

---

Install Dependencies

---

Google Sheets Setup

3.1 Create Google Cloud Project

1. Go to Google Cloud Console

2. Create new project or select existing

3. Enable Google Sheets API

3.2 Create Service Account

1. Navigate to IAM & Admin → Service Accounts

2. Click Create Service Account

3. Name: (...)

4. Assign role: Editor

5. Create key: JSON format

6. Download and save as service-account.json in project root

3.3 Google Sheets Setup

1. Download the pre-configured spreadsheet:

   • Access the shared Google Drive template:

     🔗 SmellHunter Database Template

   • Click "Make a copy" to save it to your own Google Drive

   • Rename it as needed (e.g., "SmellHunter - [Your Project Name]")

2. Worksheet Structure (already configured):

   • Bad_Smell - Contains all detected smells with complete metadata

   • Context - Logs all context events and execution history

3. Share with Service Account:

   • Open your copied spreadsheet

   • Click the "Share" button in the top-right corner

   • Add your service account email (found in service-account.json)

   • Assign role: Editor

   • Uncheck "Notify people" and click Share

4. Get Spreadsheet ID:

   • The spreadsheet URL contains the ID:
     https://docs.google.com/spreadsheets/d/``SPREADSHEET_ID_HERE``/edit

   • Copy this ID and add it to your .env file:

        SPREADSHEET_ID=YOUR_SPREADSHEET_ID
        GOOGLE_APPLICATION_CREDENTIALS=app/configs/service_account.json

5. Verify Headers (already set up):

   Bad_Smell worksheet headers:

   id, timestamp_utc, time_zone, user_id, org_id, loc_id, project_id, type, smell_type, is_smell, rule, file_path, language, branch, commit_sha, ctx_id, treatment

Context worksheet headers:

    ctx_id, user_id, org_id, loc_id, timestamp_utc, event_type

The spreadsheets are now ready to receive data from your SmellDSL Detection Service!

4. Configuration File

Create .env file in project root:

Flask settings

FLASK_ENV=development
FLASK_APP=interpreter_api.py
PORT=5000

Google Sheets

SPREADSHEET_ID=your-spreadsheet-id-here
SERVICE_ACCOUNT_FILE=service-account.json

Logging

LOG_DIR=logs

5. Project Structure

smell-detect/
├── app/
│   ├── configs/
│   │   └── settings.py
│   ├── events/
│   │   ├── event_bus.py
│   │   ├── event_types.py
│   │   ├── observers.py
│   │   └── validation_service.py
│   ├── parser/
│   │   ├── grammar.py
│   │   └── metric_extractor.py
│   ├── repositories/
│   │   └── sheets_repository.py
│   ├── interpreter_api.py
│   ├── interpreter_core.py
│   └── __init__.py
├── logs/
├── service-account.json
├── .env
└── requirements.txt

6. pip install requirements.txt

#Core dependencies
flask==2.3.3
lark==1.2.2

#Google Sheets integration
google-api-python-client==2.108.0
google-auth==2.28.1
google-auth-httplib2==0.2.0
google-auth-oauthlib==1.2.0
google-oauth2==1.0.0


#Utilities
python-dotenv==1.0.0
requests==2.31.0
dataclasses==0.6  # For Python < 3.7 (optional)
typing-extensions==4.9.0

#Development tools (optional)
pytest==7.4.4
black==23.12.1
flake8==7.0.0

Running the Application

1. Start the API Server

cd smelldetect
python -m app.interpreter_api

Eclipse Plugin Setup

🔗SmellHunter Eclipse Plugin

 Requirements

• Eclipse IDE 2023-12 or later

• JDK 21 or later

• SWT libraries (included with Eclipse)

Import Plugin Project

1. File → Import → Existing Projects into Workspace

2. Select the plugin project directory

3. Check "Search for nested projects"

4. Click Finish

Build and Run

1. Right-click on the project → Run As → Eclipse Application

2. A new Eclipse instance will launch

3. Navigate to Window → Show View → Other...

4. In the dialog, expand the plugin category and select "MyView"

5. Click Open to display the view

Data Visualization

Overview

SmellHunter persists detected smells and contextual execution data in Google Sheets.
These datasets can be connected to AppSheet to provide an interactive visualization layer for exploring detection results.

The dashboard allows users to inspect detected smells, navigate contextual information, and analyze detection outcomes through a structured interface.

🔗SmellHunter AppSheet Mobile View

🔗SmellHunter AppSheet Browser View

---

Physical Context View

This view presents contextual information related to the execution environment where the analysis occurred.
It includes metadata such as organization identifiers, project information, location identifiers, and execution timestamps.

The goal of this view is to support contextual analysis of smell occurrences across different projects and development environments.

---

Smell Details View

The Smell Details view displays the complete information related to a detected smell instance.
This includes the smell type, evaluated rule results, associated metrics, and metadata describing the analyzed artifact.

This view helps developers understand why a smell was detected and provides insights to guide refactoring decisions.
