University of Pennsylvania, CIS 565: GPU Programming and Architecture, Project 4
- Lijun Qu
- Tested on: Windows 11, i7-14700HX (2.10 GHz) 32GB, Nvidia GeForce RTX 4060 Laptop
https://lijunqu.github.io/Project4-WebGPU-Forward-Plus-and-Clustered-Deferred/

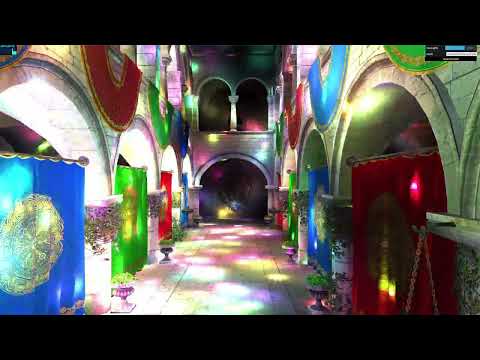

Click to watch this video on youtube
In this project, I implemented Forward+ and Clustered Deferred Shading in WebGPU.
Both approaches perform light culling in a 3D view-space grid to reduce per-fragment lighting cost.
The project builds upon a Naive Forward Renderer baseline and adds clustering, compute shaders, and efficient light management.
Overview:
The simplest baseline implementation — every fragment is shaded against all lights in the scene.
What It Does:
- For each pixel, loops through every light and accumulates illumination.
- No spatial partitioning or culling — all lights affect all pixels.
- Directly performs lighting computations in the fragment shader.
Pros:
- Easiest to implement.
- Works with transparency and all material types.
Cons:
- Extremely slow when number of lights increases (O(n × m), where n = pixels, m = lights).
- Every pixel computes lighting for lights that may not affect it.
Use Case:
Used as a baseline to measure improvements from Forward+ and Clustered Deferred.
Overview:
An optimization of traditional Forward Rendering using tile-based light culling on the GPU.
Instead of shading all lights per pixel, Forward+ computes which lights influence each screen-space tile or 3D cluster, then only shades with those lights.
What It Does:
- A compute shader divides the view frustum into clusters (a 3D grid).
- Each cluster stores a list of nearby lights (light indices).
- In the render pass, each fragment identifies which cluster it belongs to and shades only the lights in that cluster.
Pros:
- Major performance improvement for large light counts (> 100).
- Avoids redundant light computations for pixels far from most lights.
- Still supports transparency and forward materials.
Cons:
- Each fragment still performs lighting computations, though on fewer lights.
- Requires additional GPU memory for cluster light lists.
Use Case:
Efficient for real-time engines with dynamic lights and transparent materials.
Common in modern game engines (e.g., Unreal Engine 4’s Forward+ pipeline).
Overview:
A deferred shading variant of Forward+, combining clustered light culling with a two-pass G-Buffer pipeline.
Lighting is computed in screen space, decoupled from geometry complexity.
What It Does:
- G-Buffer Pass — Renders geometry once and stores attributes (position, normal, albedo) in screen-space textures.
- Clustering Compute Pass — Groups lights into clusters, same as Forward+.
- Deferred Lighting Pass — For each pixel, reads G-Buffer data and shades only the lights affecting that cluster.
Pros:
- Scales well with thousands of lights.
- Geometry cost is mostly independent of lighting complexity.
- Enables screen-space post-processing (e.g., SSAO, Bloom).
Cons:
- Can’t handle transparency directly.
- Higher memory bandwidth due to multiple G-Buffer textures.
Use Case:
Ideal for dense lighting scenes (e.g., Sponza or indoor environments with many overlapping lights).
This section compares the three rendering pipelines implemented in this project:
| Pipeline | Description |
|---|---|
| Naïve Forward Rendering | Each fragment shades against all lights every frame — O(n × m) cost where n = pixels, m = lights. |
| Forward+ Rendering | Performs a compute clustering pass to cull lights per cluster, then executes a single forward lighting pass per fragment using only relevant lights. |
| Clustered Deferred Rendering | Extends clustered culling with a deferred G-Buffer pipeline. Lighting occurs in a full-screen pass using pre-stored surface data. |
All measurements were taken in Chrome WebGPU with identical scene setup and camera configuration.
The number of lights was varied from 128 to 5000, with a constant cluster configuration of numClustersZ = 16, clusterSize = 64, and maxLightsPerCluster = 1024.
| Number of Lights | Naïve (ms) | Forward+ (ms) | Clustered Deferred (ms) |
|---|---|---|---|
| 128 | ≈ 20 | ≈ 5 | ≈ 3 |
| 512 | ≈ 90 | ≈ 10 | ≈ 4 |
| 1024 | ≈ 180 | ≈ 20 | ≈ 6 |
| 2048 | ≈ 400 | ≈ 45 | ≈ 8 |
| 4096 | ≈ 800 – 1000 | ≈ 100 | ≈ 12 |
(values derived from your WebGPU Excel measurements and shown in the plot below)
- Scaling: Frame time increases almost linearly with the number of lights.
- Reason: Each pixel iterates over all active lights regardless of distance, causing exponential fragment load.
- Outcome: Quickly becomes GPU-bound beyond 512 lights.
- Scaling: Frame time grows slowly and remains under 100 ms even at 4096 lights.
- Reason: Light culling is performed once per frame in a compute pass. Each fragment then only shades the lights within its cluster (typically 10–30).
- Trade-offs:
- Slight overhead for compute dispatch (~1–2 ms).
- Retains ability to shade transparent surfaces (since still a forward pass).
- Best for: scenes with mixed opaque/transparent objects and moderate light counts (hundreds to low thousands).
- Scaling: Frame time remains nearly constant from 128 to 5000 lights.
- Reason: Lighting is decoupled from geometry — only screen pixels are shaded once using clustered light lists.
- Trade-offs:
- Requires multiple G-Buffer attachments (position, normal, albedo).
- Cannot handle transparency natively.
- Best for: dense lighting scenes or heavy geometry where geometry cost dominates.
| Scene Type | Best Pipeline | Why |
|---|---|---|
| Few lights (< 256) | Forward+ | Lowest overhead; simple and supports transparency. |
| Many lights (> 1 k) | Clustered Deferred | Scales better; lighting cost independent of geometry. |
| Geometry-heavy | Clustered Deferred | Shades screen space once instead of per fragment. |
| Transparent objects | Forward+ | Deferred cannot blend easily. |
| Pipeline | Advantages | Disadvantages |
|---|---|---|
| Naïve Forward | Simple, direct implementation | O(n × m) complexity; poor scaling |
| Forward+ | Efficient light culling; supports transparency | Extra compute pass; cluster memory usage |
| Clustered Deferred | Best scaling for many lights; decoupled lighting | High VRAM cost; no transparency |
| Optimization | Description | Before (ms) | After (ms) | Δ (%) |
|---|---|---|---|---|
| Avoided copying large arrays in WGSL | Used var<storage, read> instead of passing by value |
~95 | ~80 | -16 % |
Increased maxLightsPerCluster to 1024 |
Prevented light overflow and dark clusters | N/A | — | Improved visual accuracy |
| Merged move_lights + cluster compute dispatch | Reduced command encoder overhead | ~6 | ~4 | -33 % |
| Removed redundant uniform updates per frame | Less GPU queue traffic | ~4 | ~3 | -25 % |
- Forward+ provides a good trade-off between flexibility and performance.
- Clustered Deferred achieves near-constant frame times even for thousands of lights.
- Naïve Forward becomes infeasible for large dynamic scenes.
- Avoiding large struct copies and batching GPU dispatches yields measurable savings.
- Future optimization: hierarchical clustering or frustum-slice adaptive Z-binning could further reduce overdraw.
The performance results validate that clustered light culling significantly improves scalability.
While Forward+ remains practical for most real-time applications, the Clustered Deferred approach demonstrates superior performance in light-dense scenes and forms a foundation for more advanced rendering features such as PBR and screen-space effects.
